MCC132-14IO1B IXYS module

1、MCC132-14IO1B Core features

1 High voltage and high current processing power：

· MCC132-14IO1B supports an off-state voltage of 1400V and an on-state average current (It(AV)) of 130A. It can handle high-power loads and is suitable for industrial scenarios that require high voltage and high current.

2 High reliability and stability：

· The module adopts planar passivation chip technology, which enhances the anti-interference ability and reduces the failure rate.At the same time, its wide operating temperature range (-40°C to 125°C) can adapt to harsh industrial environments and ensure long-term stable operation.

3 Flexible trigger control features：

· The gate trigger voltage (Vgt) of MCC132-14IO1B is up to 2.5V and the gate trigger current (Igt) is up to 150mA. The trigger sensitivity is high and it is easy to accurately control.In addition, its holding current (Ih) is up to 200mA, which ensures stable conduction and reduces the risk of false triggering.

4 Optimized thermal design：

· The module uses direct copper bonding to an alumina ceramic substrate (DBC), which optimizes the heat conduction path and improves the heat dissipation efficiency, thereby extending the service life of the module.

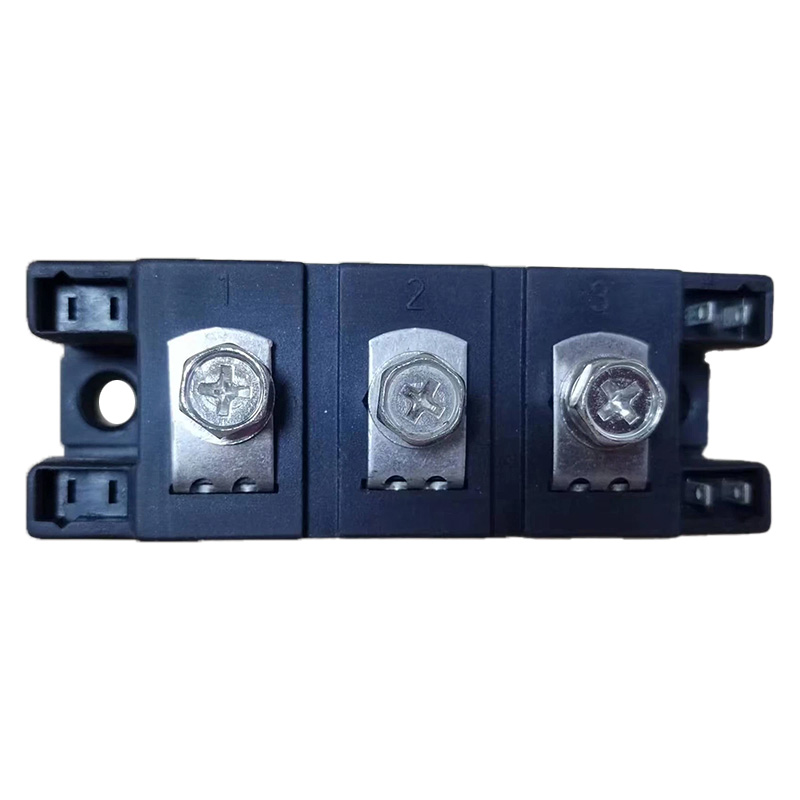

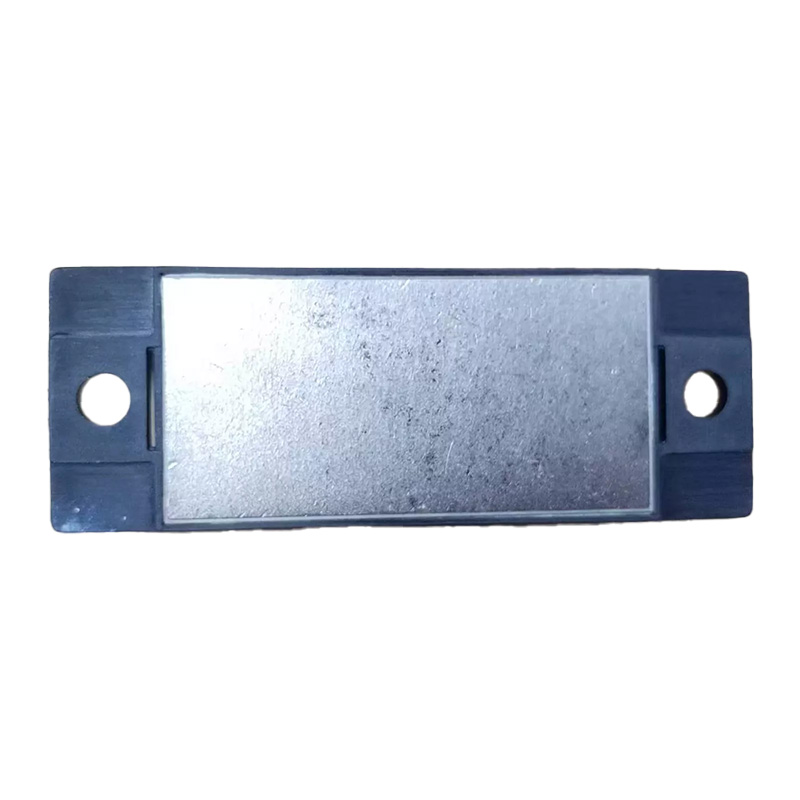

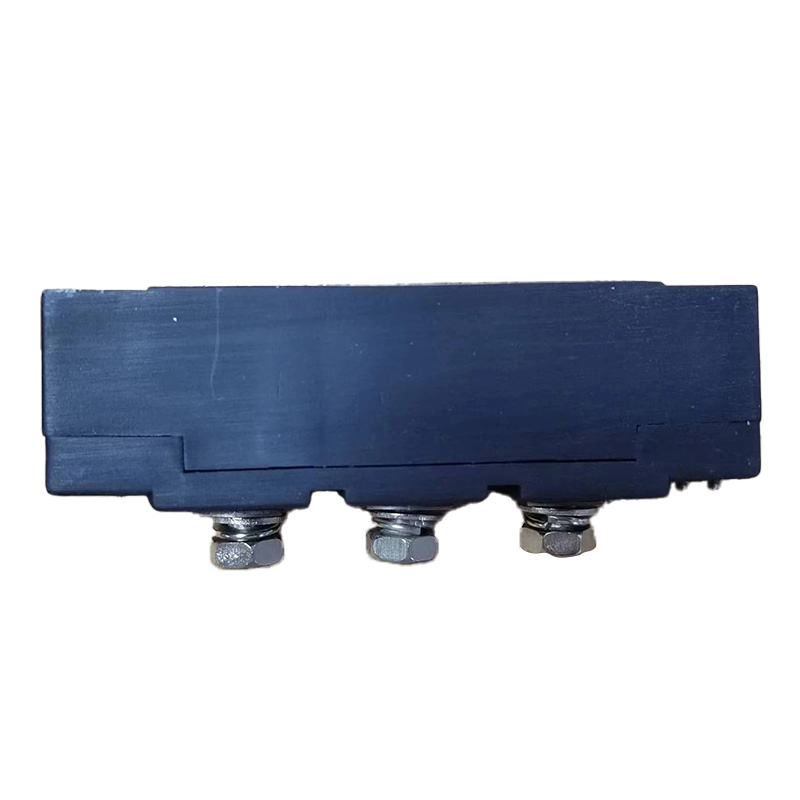

2、MCC132-14IO1B Product picture
