MBDHT2510E Panasonic Servo Driver Durable Reliable in stock

1、MBDHT2510E Product specifications

1 Power and voltage：

· The rated output power is 400W and the rated voltage is AC200V.

2 Torque and current：

· The rated torque is 1.3N·m, the rated current is 2.6A, and the instantaneous maximum current is 11.0A.

3 Moment of inertia：

· When there is no brake, the moment of inertia of the rotor is 0.28, and when there is a brake, it is 0.70. The recommended load moment of inertia ratio corresponding to the moment of inertia of the rotor is less than 30 times.

4 Load capacity：

· In terms of allowable load, the axial load is 147N when assembled, and the A and B directions cannot be used for braking when the motor is rotating during operation; the radial load is 245N when assembled in the P direction.

5 Braking characteristics：

· The static friction torque is above 1.27N·m, the attraction time is below 50ms, the dynamic magnetic current DCA is 0.36, the release voltage DCM is above 1V, and the dynamic magnetic voltage DCM is 24+ 1.2V.

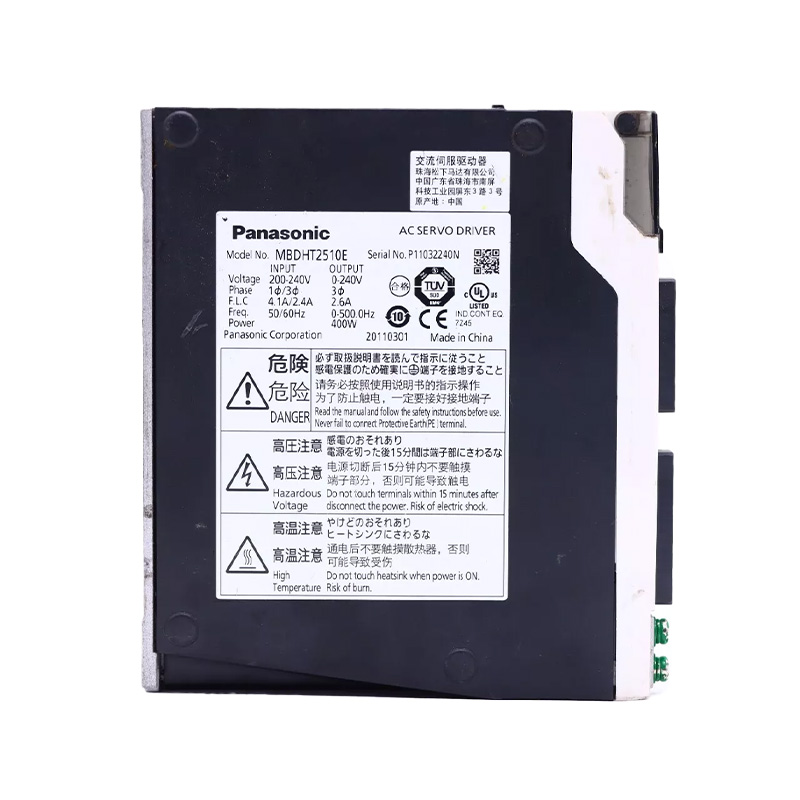

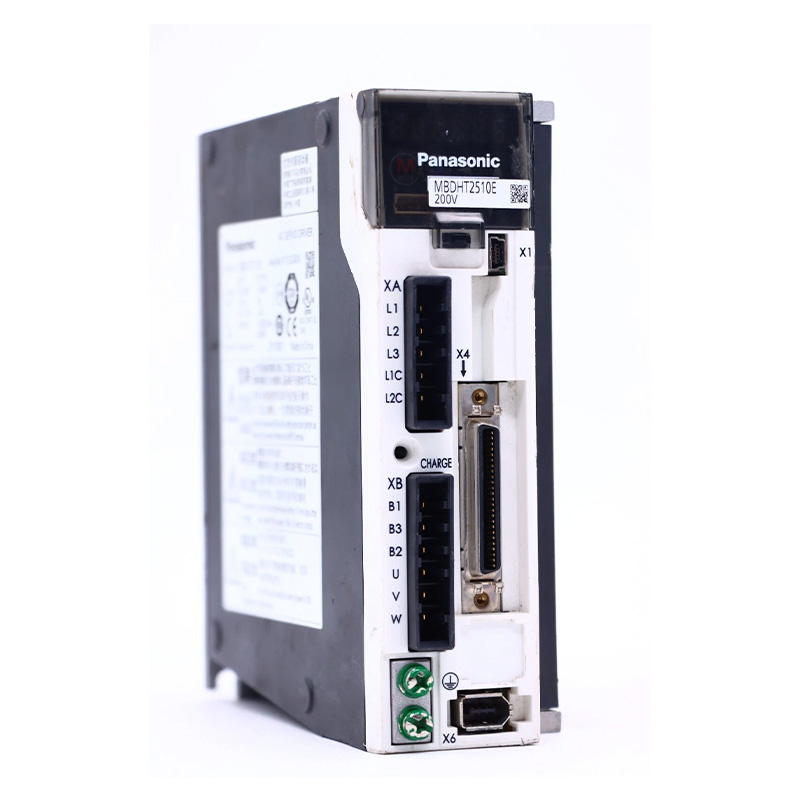

2、MBDHT2510E Product picture
