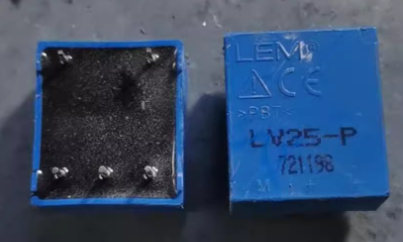

Voltage Transducer LV25-P/SP5 LEM Make HSN code 90303330

Voltage Transducer LV25-P/SP5 LEM Make HSN code 90303330

Price: ~~$32.00~~ $31.00 / piece

Quantity:		Unit(s) MOQ: 1



Add to wish list

Calculate shipping price

WINNI (HK) ELECTRONIC CO., LIMITED

Invshop168

+8613827441621

winnihk88@winnihk.com

facebook:invshop@163.com

youtube:invshop-com

linked:WINNI (HK) ELECTRONIC CO., LIMITED

Require:*

Product Model*	Target price	Qty *

Message

Your contact info:

Additional info:

Name: *

1. Quote with shipping freight?

Email : *

Phone:

2. Which carrier do you perfert?

Company:

	Fedex		UPS		DHL
	TNT		other

Country:*

All Categories

-81%
OFF

$55.00

$100.00

Products Details

Inventory Information

Seller Guarantees

Feedback

Reveiw

Voltage Transducer

Brand

OTHER

Model

Voltage Transducer LV25-P

Detailed Product Description

Shipping Method	Received days	Shipping area	Fit
DHL	3-6 Days	All over the world	All
FEDEX	5-7 Days	All over the world	There's no LOGO on the product.
UPS(Official partners)	2-5 Days	All over the world	There's no LOGO on the product.
TNT	3-6 Days	All over the world	All
Sweden Post	20-35 Days	All over the world	Total Weight < 1 KG

*The goods will be shipped within 1-3days after you paid.

*The buyer can choose DHL/FEDEX/TNT/EMS,But BRAZIL and RUSSIA Country only can use EMS.

*Buyer will be 100% responsible for any custom duty if there is any.

*The remote area need to pay the more extra USD32.00 fees.

Q1:How can I get the quotation?

A:Please enquire via Skype,Email,whatsapp or telephone.

Q2:What payments do you accept?

A:Our website accepts most forms of paypal payments.We accept credit cards(via Paypal), T/T, Western Union. you can choose your favorite method when you check out.

Q3: How long is the lead time?

A:The lead time is about 1-3 working days after receipt of payment.

Q4:What is your return and refund policy?

A:We provide you excellent after-sales services, and promise you 3-month warranty after shipping to assure you a stable performance.

LEM LV25-P Voltage Transducer Technical Specifications

Parameter	Specification	Details / Description
Manufacturer Part Number	LV25-P	LEM Voltage Transducer Series
Product Type	Isolated Voltage Transducer / Sensor
Primary Nominal Voltage (V<sub>PN</sub>)	25 V	The voltage to be measured that produces nominal output.
Primary Voltage Measuring Range (V<sub>P</sub>)	0 to ±50 V	Can measure DC, AC, and pulsed voltages within this range.
Nominal Output Current (I<sub>SN</sub>)	25 mA	The output current at primary nominal voltage.
Conversion Ratio	25 V : 25 mA or 1000:1 (V<sub>PN</sub> : I<sub>SN</sub>)
Supply Voltage (V<sub>C</sub>)	±15 VDC (±5%)	Dual power supply required for operation.
Current Consumption	20 mA + I<sub>S</sub> (max 35 mA)
Load Resistor (R<sub>L</sub>)	≤ 250 Ω (Recommended for V<sub>C</sub> = ±15V)	Converts the output current to a voltage signal.
Accuracy (X<sub>G</sub>)	±0.8 % (at T<sub>A</sub> = +25°C, V<sub>PN</sub>, I<sub>C</sub> rated)	Of measured value.
Linearity Error (ε<sub>L</sub>)	< 0.2 %
Response Time (t<sub>r</sub>)	< 40 μs	For a step change from 10% to 90% of I<sub>SN</sub>.
Bandwidth (-1 dB)	> 25 kHz
Dielectric Strength (Hi-Pot)	3 kV AC / 50 Hz / 1 min (Primary to Secondary)	Provides high galvanic isolation.
Operating Temperature (T<sub>A</sub>)	-25 to +85 °C
Storage Temperature (T<sub>S</sub>)	-40 to +90 °C
Technology	Closed-Loop (Compensated) Hall Effect	Provides high accuracy and fast response.

Quality: New, Original package
RMA Policy: RMA 3 month
Quantity: 120
Sample: Paid Sample
Stock Location: China
Delivery: WorldWide
Lead Time: 1 week
Price Term: T/T, Western Union, MoneyGram, PayPal, Escrow etc
Remark: NEW
Weight: 0.500Kg
