TTM-004-P-AB TOHO temperature controller

1、TTM-004-P-AB Product advantage

1 Support for multiple input signals：

· Support thermocouple (K, J, R, N, S, B), R.T.D (PT100, JPt100) and a variety of voltage/current signals (0-5V, 1-5V, 4-20mA) can be adapted to a variety of sensors and measurement needs.

2 Flexible output configuration：

· Provide a variety of options such as Relay contacts, SSR driving voltage (0-12VDC), and current output (4-20mA) to meet different actuator and control needs.

3 High precision control：

· It has an accuracy of ± (0.3%+1 bit) to ensure reliable temperature control under various operating conditions.

4 Rich features：

· Timer function: Supports timing operation to facilitate automated process control.

· Priority parameter display: quickly view and set key parameters to improve operational efficiency.

· PV filtering function: reduce measurement noise and improve control stability.

· Heating/cooling control: support two-way temperature control to adapt to different process needs.

· BLIND hidden parameter function: Protect key parameters from being modified by misoperation.

5 Multiple communication interfaces：

· Optional RS232/RS485 communication interface, support ModBUS communication protocol, easy to exchange data and system integration with the host computer or other equipment.

6 Wide supply voltage range：

· Support AC100~240V 50/60Hz or AC/DC24V power input, adapt to the power standards of different regions.

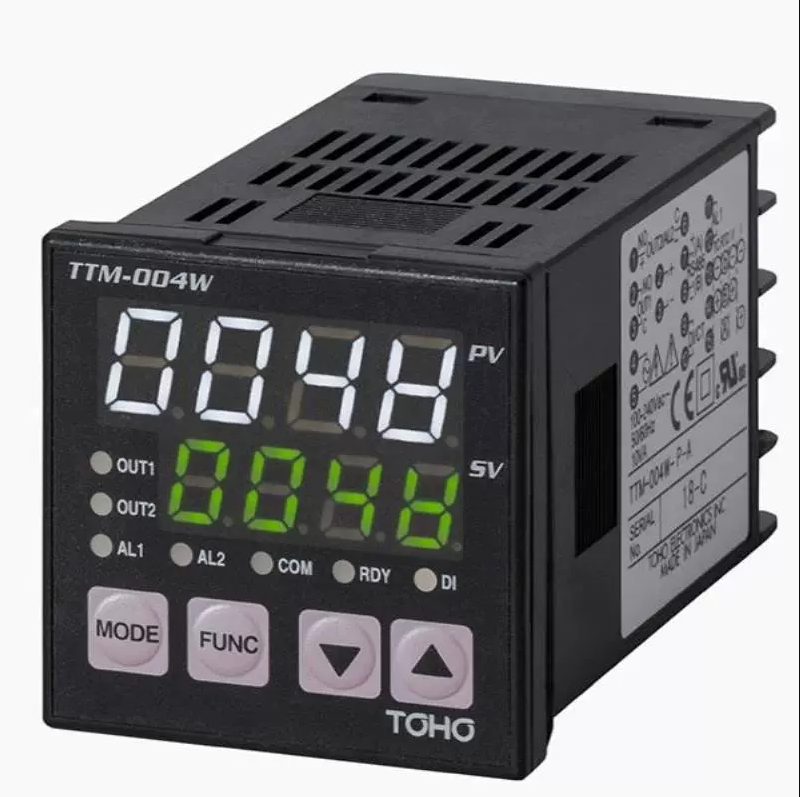

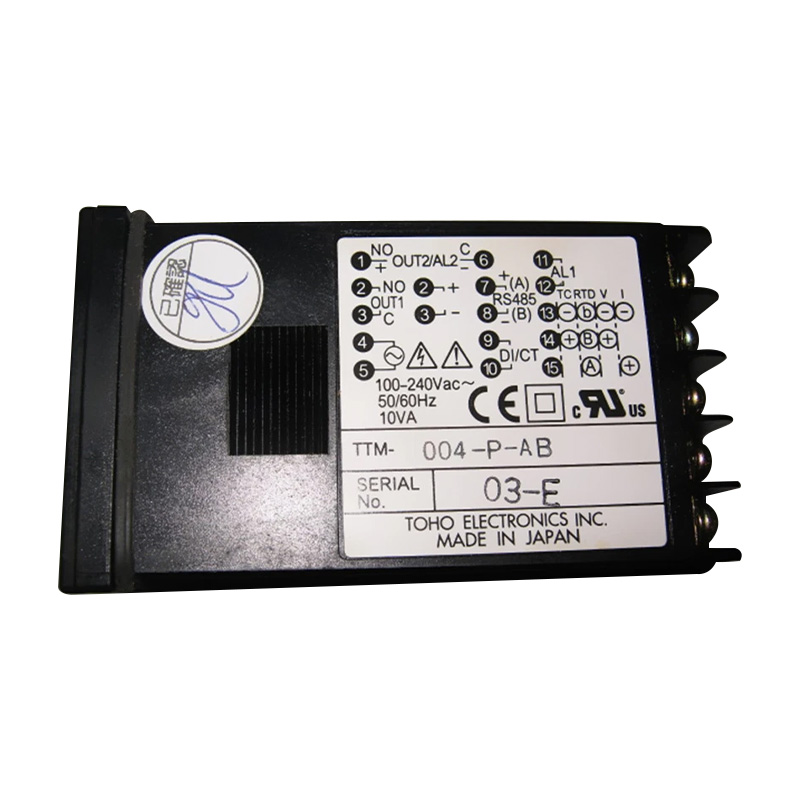

2、TTM-004-P-AB Product picture
