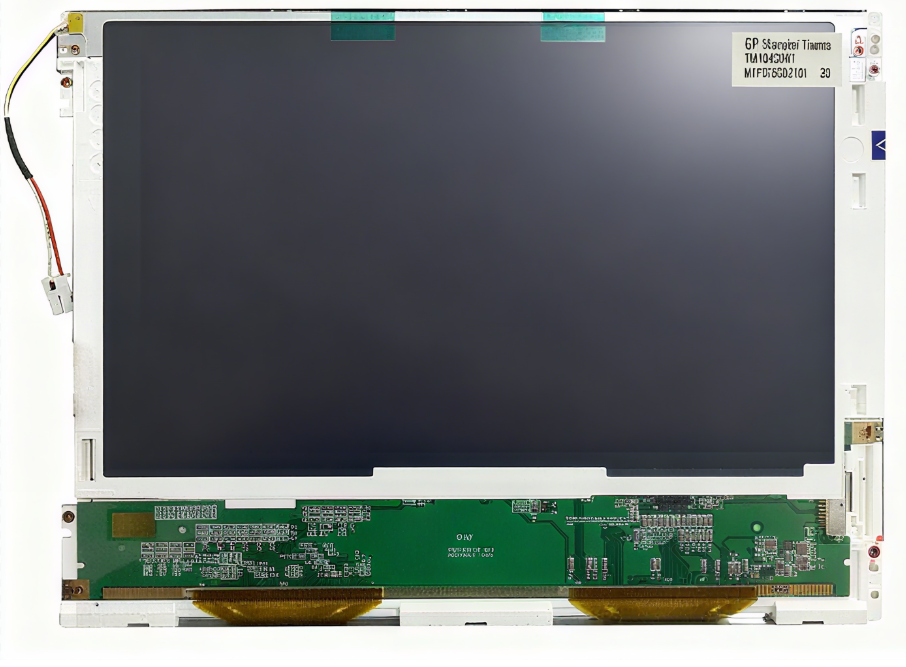

TM104SDH01-20 TIANMA 10.4inch 800(RGB)×600 LCD DISPLAY
TM104SDH01-20 Datasheets Download
Name: TM104SDH01-20.pdfTyp
LCD DISPLAY
Marke
TIANMA
Modell
TM104SDH01-20
| Model: | TM104SDH01-20 | Panel-type: | a-Si TFT-LCD, LCM |
| Size: | 10.4” | Resolution: | 800(RGB)×600, SVGA 96PPI |
| Display Area: | 211.2(W)×158.4(H) mm | Outline Size: | 236(W)×176.9(H) ×5.9(D) mm |
| Brightness: | 400 cd/m² (Typ.) | Contrast Ratio: | 400:1 (Typ.) (TM) |
| Viewing Angle: | 70/70/60/70 (Typ.)(CR≥10) | Operating Mode : | TN, Normally White, Transmissive |
| Support Color: | 262K 50% NTSC | Response Time: | 10/15 (Typ.)(Tr/Td) |
| Signal Interface: | LVDS (1 ch, 6-bit) , 20 pins Connector | Backlight type: | 6S6P WLED , 30K hours , Without Driver |
| Touch Screen: | Without | Operating Temp.: | -20 ~ 70 °C |
| Model: | TM104SDH01-20 | Panel-type: | a-Si TFT-LCD, LCM |
| Size: | 10.4” | Resolution: | 800(RGB)×600, SVGA 96PPI |
| Display Area: | 211.2(W)×158.4(H) mm | Outline Size: | 236(W)×176.9(H) ×5.9(D) mm |
| Brightness: | 400 cd/m² (Typ.) | Contrast Ratio: | 400:1 (Typ.) (TM) |
| Viewing Angle: | 70/70/60/70 (Typ.)(CR≥10) | Operating Mode : | TN, Normally White, Transmissive |
| Support Color: | 262K 50% NTSC | Response Time: | 10/15 (Typ.)(Tr/Td) |
| Signal Interface: | LVDS (1 ch, 6-bit) , 20 pins Connector | Backlight type: | 6S6P WLED , 30K hours , Without Driver |
| Touch Screen: | Without | Operating Temp.: | -20 ~ 70 °C |
Die kunden.:
Der Preis:
![]()
![]()
![]()
![]()
![]()
Qualität:
![]()
![]()
![]()
![]()
![]()
Leicht:
![]()
![]()
![]()
![]()
![]()
BEI der Geschwindigkeit:
![]()
![]()
![]()
![]()
![]()
Allgemeine BEWERTUNG:
![]()
![]()
![]()
![]()
![]()
04/20/2024, By
04/20/2024, By
Great
Der Preis:
![]()
![]()
![]()
![]()
![]()
Qualität:
![]()
![]()
![]()
![]()
![]()
Leicht:
![]()
![]()
![]()
![]()
![]()
BEI der Geschwindigkeit:
![]()
![]()
![]()
![]()
![]()
Allgemeine BEWERTUNG:
![]()
![]()
![]()
![]()
![]()
04/20/2024, By
04/20/2024, By
Great deal! Would buy from again
Der Preis:
![]()
![]()
![]()
![]()
![]()
Qualität:
![]()
![]()
![]()
![]()
![]()
Leicht:
![]()
![]()
![]()
![]()
![]()
BEI der Geschwindigkeit:
![]()
![]()
![]()
![]()
![]()
Allgemeine BEWERTUNG:
![]()
![]()
![]()
![]()
![]()
04/20/2024, By
04/20/2024, By
Excellent, many thanks
Der Preis:
![]()
![]()
![]()
![]()
![]()
Qualität:
![]()
![]()
![]()
![]()
![]()
Leicht:
![]()
![]()
![]()
![]()
![]()
BEI der Geschwindigkeit:
![]()
![]()
![]()
![]()
![]()
Allgemeine BEWERTUNG:
![]()
![]()
![]()
![]()
![]()
04/20/2024, By
04/20/2024, By
NO PROBLEM. GOOD WORK
Der Preis:
![]()
![]()
![]()
![]()
![]()
Qualität:
![]()
![]()
![]()
![]()
![]()
Leicht:
![]()
![]()
![]()
![]()
BEI der Geschwindigkeit:
![]()
![]()
![]()
![]()
![]()
Allgemeine BEWERTUNG:
![]()
![]()
![]()
![]()
04/20/2024, By
04/20/2024, By
Fast delivery
Der Preis:
![]()
![]()
![]()
![]()
![]()
Qualität:
![]()
![]()
![]()
![]()
![]()
Leicht:
![]()
![]()
![]()
![]()
![]()
BEI der Geschwindigkeit:
![]()
![]()
![]()
![]()
![]()
Allgemeine BEWERTUNG:
![]()
![]()
![]()
![]()
![]()
04/20/2024, By
04/20/2024, By
Worked Great
Der Preis:
![]()
![]()
![]()
![]()
![]()
Qualität:
![]()
![]()
![]()
![]()
![]()
Leicht:
![]()
![]()
![]()
![]()
![]()
BEI der Geschwindigkeit:
![]()
![]()
![]()
![]()
![]()
Allgemeine BEWERTUNG:
![]()
![]()
![]()
![]()
![]()
04/20/2024, By
04/20/2024, By
Good quality products
Der Preis:
![]()
![]()
![]()
![]()
![]()
Qualität:
![]()
![]()
![]()
![]()
![]()
Leicht:
![]()
![]()
![]()
![]()
![]()
BEI der Geschwindigkeit:
![]()
![]()
![]()
![]()
![]()
Allgemeine BEWERTUNG:
![]()
![]()
![]()
![]()
![]()
04/20/2024, By
04/20/2024, By
good
Der Preis:
![]()
![]()
![]()
![]()
![]()
Qualität:
![]()
![]()
![]()
![]()
![]()
Leicht:
![]()
![]()
![]()
![]()
![]()
BEI der Geschwindigkeit:
![]()
![]()
![]()
![]()
![]()
Allgemeine BEWERTUNG:
![]()
![]()
![]()
![]()
![]()
04/20/2024, By
04/20/2024, By
item as described and packaged well
Der Preis:
![]()
![]()
![]()
![]()
![]()
Qualität:
![]()
![]()
![]()
![]()
![]()
Leicht:
![]()
![]()
![]()
![]()
![]()
BEI der Geschwindigkeit:
![]()
![]()
![]()
![]()
Allgemeine BEWERTUNG:
![]()
![]()
![]()
![]()
04/20/2024, By
04/20/2024, By
Order received in good condition. Would definitely use this seller again for any future orders.
TM104SDH01-20 Zusammenfassung
The TM104SDH01-20 is a 10.4-inch TFT-LCD module by Tianma featuring 800×600 SVGA resolution, 500 cd/m² brightness, and 700:1 contrast ratio. It utilizes LED backlight, supports wide temperature operation (-30~80°C), and offers reliable performance for industrial, medical, and HMI applications in demanding environments.
