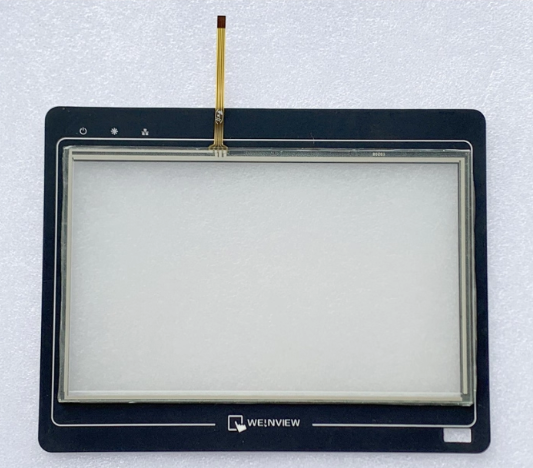

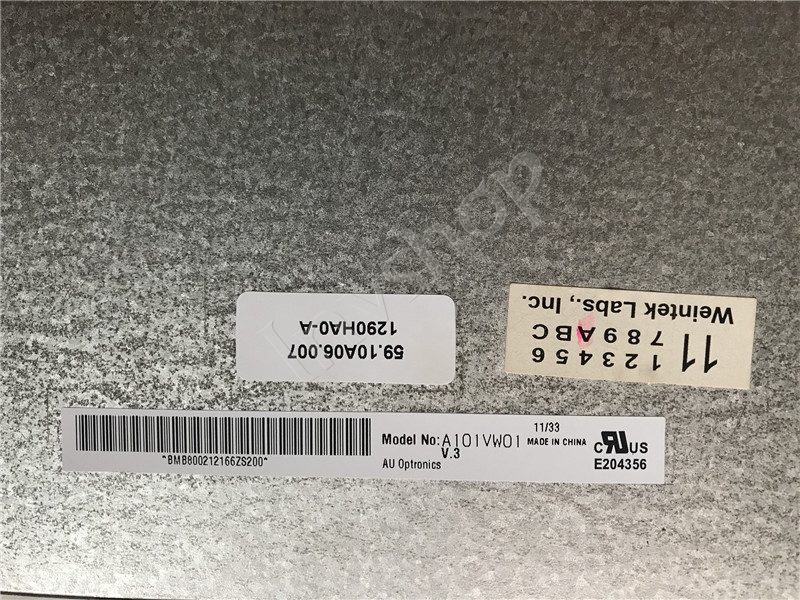

TK6100iV3WV HMI inside LCD Display New and Original

Display Specifications

• Display Type: TFT LCD

• Resolution: 1024 × 600 pixels (WSVGA)

• Color Depth: 16.7M colors (True Color)

• Brightness: 450 cd/m²

• Backlight: LED

• Backlight Life: 50,000 hours

• Touch Panel: Analog Resistive

• Viewing Angle: 170°

Hardware Specifications

• Processor: 32-bit RISC CPU, 400 MHz

• Memory:

• Flash Memory: 128 MB

• SDRAM: 64 MB

• Real-Time Clock (RTC): Built-in with battery backup

• Battery Life: Approx. 5 years

Communication Interfaces

• USB 2.0:

• 1 × USB Type-B (For PC connection and project download)

• 1 × USB Type-A (For peripheral connection and data storage)

• Serial Ports:

• 1 × RS-232 (Configurable)

• 1 × RS-485 (Configurable, 2-wire/4-wire)

• Ethernet: 10/100Mbps RJ45 (For network connection and remote access)

Electrical Specifications

• Rated Voltage: 24V DC

• Allowable Range: 20.4V DC to 28.8V DC

• Power Consumption: ≤ 25W

• Inrush Current: ≤ 40A (for 20ms)

• Protection: Reverse polarity protection, overcurrent protection

Environmental Specifications

• Operating Temperature: 0°C to 50°C (32°F to 122°F)

• Storage Temperature: -20°C to 60°C (-4°F to 140°F)

• Relative Humidity: 5% to 95% RH (Non-condensing)

• Protection Rating: Front panel: IP65 (Dust-tight and protected against water jets)

Physical Specifications

• Cutout Dimensions: 261 × 180 mm (10.28 × 7.09 inches)

• Panel Dimensions: 270 × 189 × 46 mm (10.63 × 7.44 × 1.81 inches)

• Weight: Approx. 1.5 kg (3.31 lbs)

Software & Programming

• Configuration Software: EBPro (EasyBuilder Pro) V6.00.01 or later

• Supported Protocols:

• Siemens: S7-200/300/400/1200/1500, LOGO!

• Mitsubishi: FX Series, Q Series, A Series

• Omron: C/CP/CJ/CS/CV Series, NJ/NX Series

• Allen-Bradley: MicroLogix, CompactLogix, ControlLogix

• Modbus: RTU, ASCII, TCP/IP

• Others: Delta, Toshiba, Fuji, Panasonic, etc.

Advanced Features

• Recipe Function: Supports up to 3000 recipe records

• Data Logging: Built-in data storage with file management

• Alarm Management: Comprehensive alarm system with history

• Security: Multi-level password protection

• Multi-language Support: Up to 32 languages

• Remote Access: VNC Server functionality for remote monitoring and control

Certifications & Standards

• CE: Compliant

• RoHS: Compliant

• FCC: Part 15 Class A

Typical Applications

• Industrial Automation

• Machine Control Panels

• Process Monitoring Systems

• Building Automation

• Data Acquisition Systems

Important Notes:

1. Software Compatibility: Requires EBPro V6.00.01 or later for full functionality

2. Download Cable: Use recommended USB cable for project download

3. Installation: Ensure proper grounding and use recommended power supply

4. Maintenance: Regular backup of project files and system parameters

Recommended Accessories:

• Power Cable: 24V DC power supply unit

• Communication Cables: Specific to connected PLCs

• Mounting Kit: Panel mounting brackets and seals
