S8FS-G10024CD rail power supply

1、S8FS-G10024CD Basic parameters

1 Input voltage：85~264 VAC (some 80 VDC to 370 VDC DC inputs)

2 Output voltage：24V DC

3 Output current：Maximum 4.5A

4 power：100W

5 efficiency：89%

6 Operating temperature range：-20°C to 70°C (with derating)

7 Isolation voltage：3kV

2、S8FS-G10024CD Features and benefits

1 Adjustable output:

· Support fine-tuning of the output voltage to meet the power supply needs of different equipment.

2 Universal input：

· It supports a wide range of AC input voltages and is suitable for power grid standards in different regions.

3 High efficiency:

· The 89% conversion efficiency helps reduce energy waste and operating costs.

4 Good isolation performance:

· The isolation voltage of 3kV ensures the safety and stability of the power supply.

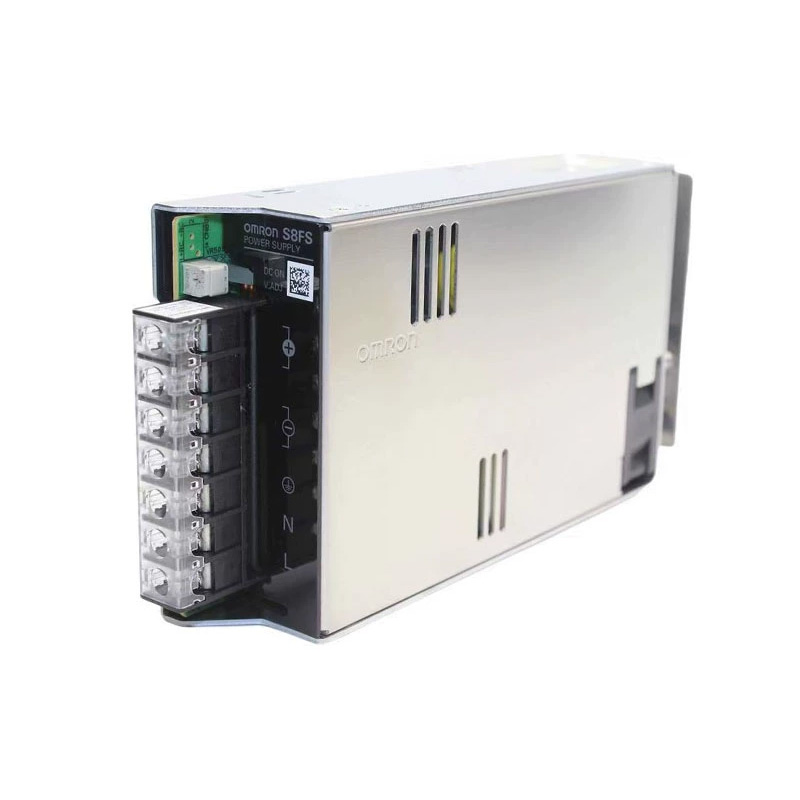

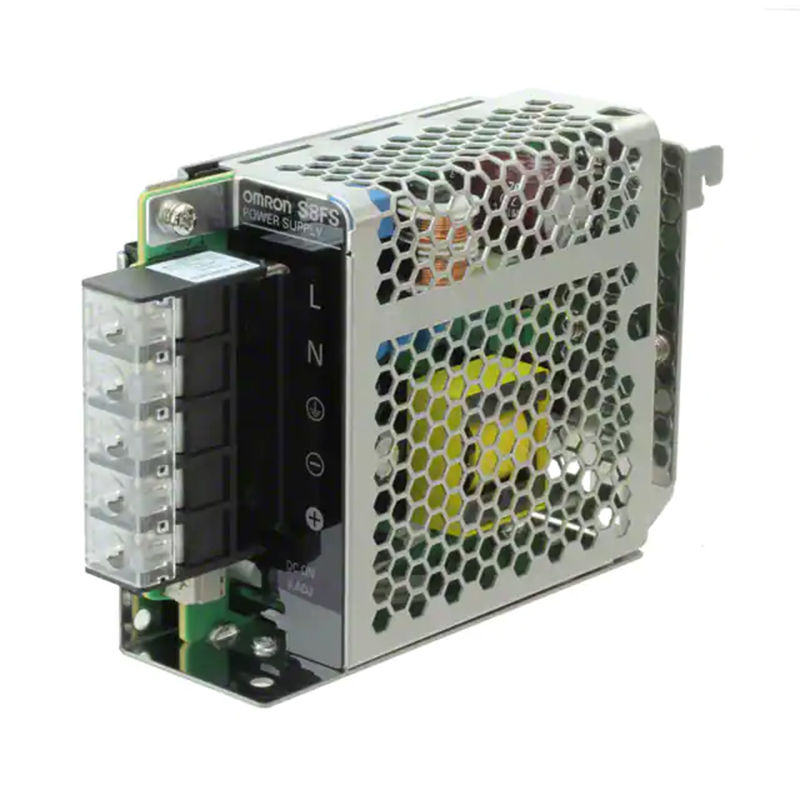

3、S8FS-G10024CD Product picture
