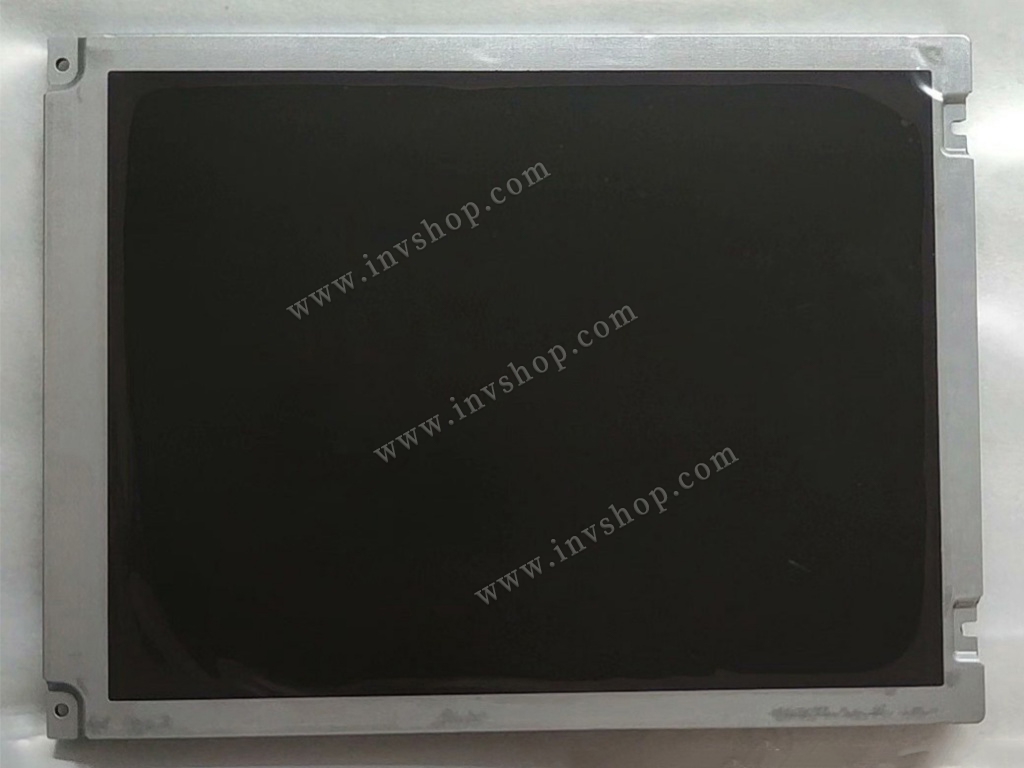

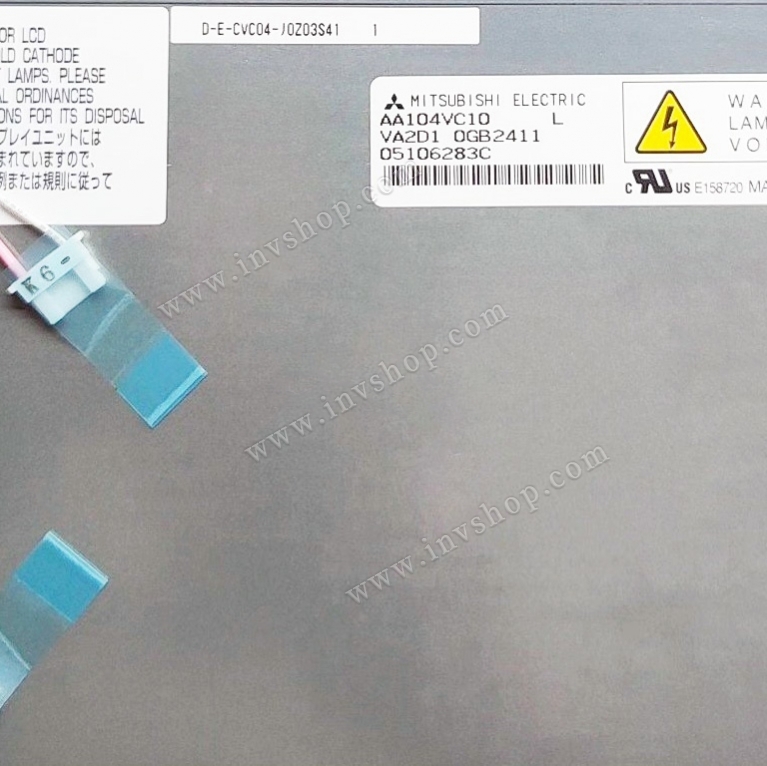

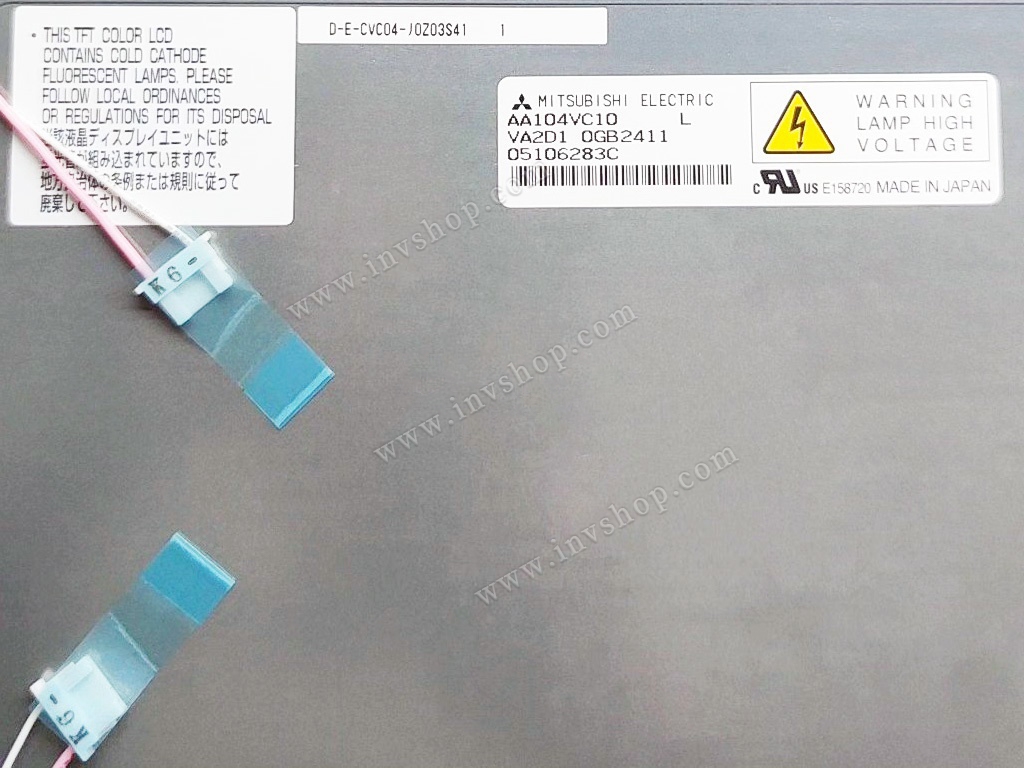

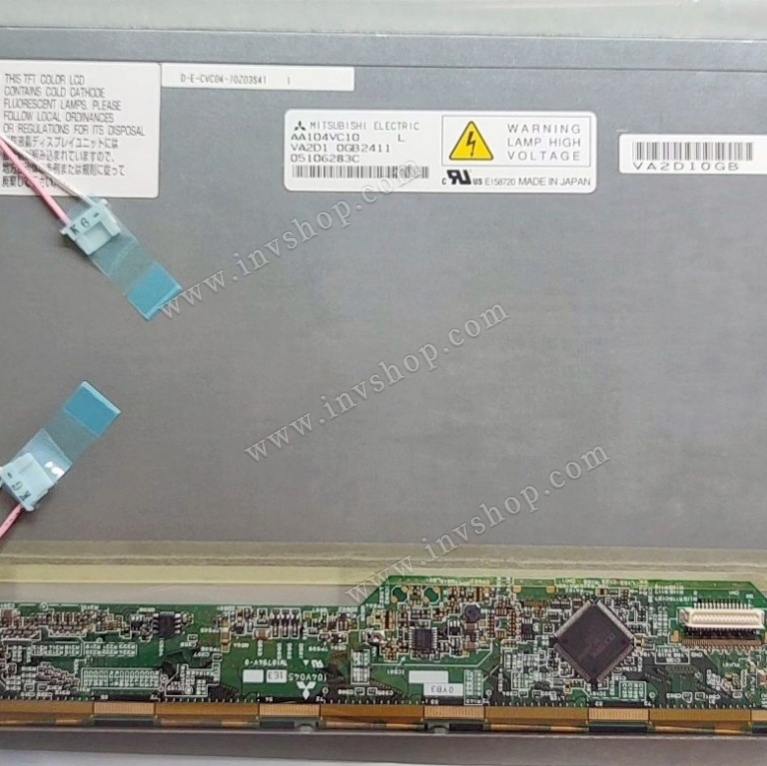

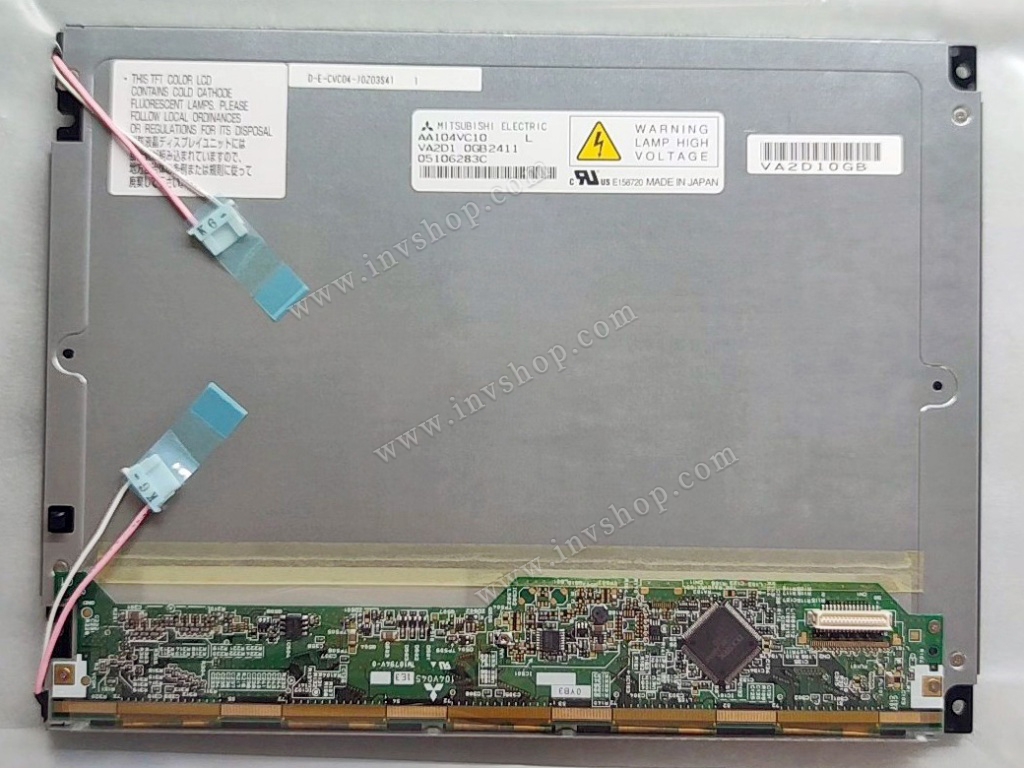

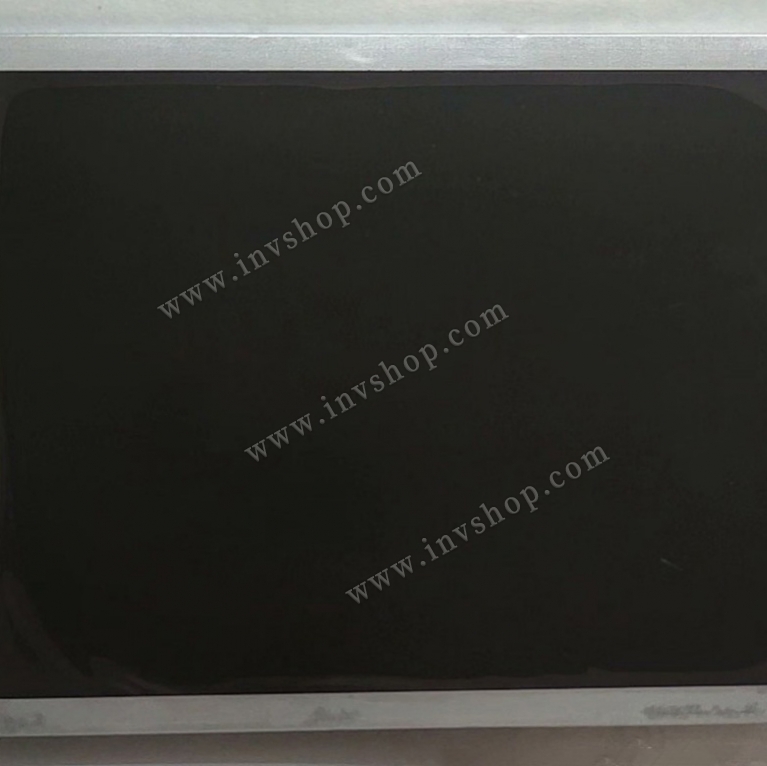

Name: AA104VC10.pdfOriginal AA104VC10 10.4" LCD Display Panel Screen for Mitsubishi
Product Overview
For over a decade, AA104VC10 has been the go-to replacement screen for aging Mitsubishi-based industrial equipment. Field engineers report that the panel’s standard mechanical footprint (243×181.6×12.7mm) and 31-pin CMOS interface enable direct drop-in replacement for original panels, eliminating the need for hardware modifications or firmware updates. The dual CCFL backlight provides consistent brightness for over 50,000 hours, supporting 24/7 operation in factory settings without flickering or uneven illumination. Its -20°C to +70°C operating temperature range ensures reliable performance in cold warehouses, hot machine shops, and fluctuating industrial environments. The 3H hard coating protects the screen from daily wear, while the anti-glare matte surface reduces reflections from overhead lights, improving readability for operators.
Product Applications
AA104VC10 is widely used in:
Legacy Mitsubishi-compatible industrial HMI and control panels
CNC machine tools and machining equipment operation screens
Factory automation production line monitoring terminals
Aging industrial testing instruments and analytical equipment
Direct replacement for original AA104VC10 panels in discontinued devices
Industrial control systems requiring 640×480 VGA resolution with CMOS interface
AA104VC10 Product Specifications Table
| Model: | AA104VC10 | Panel Type: | a-Si TFT-LCD, LCM |
| Size: | 10.4" | Power Supply: | 3.3V (Typ.) |
| Pixel Number: | 640(RGB)×480, VGA, 4:3 | Frame Rate: | 60Hz |
| Active Area: | 211.2×158.4 mm (H×V) | Contrast Ratio: | 500:1 (Typ.) (TM) |
| Luminance: | 430 cd/m² (Typ.) | Operating Mode: | TN, Normally White, Transmissive |
| Viewing Angle: | 65/65/45/65 (Typ.)(CR≥10) | Response Time: | 6/19 (Typ.)(Tr/Td) |
| Support Color: | 262K, 40% NTSC | Light Source: | 2 pcs CCFL, 50K hrs, No Driver |
| Interface: | CMOS (1 ch, 6-bit) , Connector 31 pins | Operating Temp: | -20 ~ 70 °C |
FAQ
Product Image
Original AA104VC10 10.4" LCD Display Panel Screen for Mitsubishi
Product Overview
For over a decade, AA104VC10 has been the go-to replacement screen for aging Mitsubishi-based industrial equipment. Field engineers report that the panel’s standard mechanical footprint (243×181.6×12.7mm) and 31-pin CMOS interface enable direct drop-in replacement for original panels, eliminating the need for hardware modifications or firmware updates. The dual CCFL backlight provides consistent brightness for over 50,000 hours, supporting 24/7 operation in factory settings without flickering or uneven illumination. Its -20°C to +70°C operating temperature range ensures reliable performance in cold warehouses, hot machine shops, and fluctuating industrial environments. The 3H hard coating protects the screen from daily wear, while the anti-glare matte surface reduces reflections from overhead lights, improving readability for operators.
Product Applications
AA104VC10 is widely used in:
Legacy Mitsubishi-compatible industrial HMI and control panels
CNC machine tools and machining equipment operation screens
Factory automation production line monitoring terminals
Aging industrial testing instruments and analytical equipment
Direct replacement for original AA104VC10 panels in discontinued devices
Industrial control systems requiring 640×480 VGA resolution with CMOS interface
AA104VC10 Product Specifications Table
| Model: | AA104VC10 | Panel Type: | a-Si TFT-LCD, LCM |
| Size: | 10.4" | Power Supply: | 3.3V (Typ.) |
| Pixel Number: | 640(RGB)×480, VGA, 4:3 | Frame Rate: | 60Hz |
| Active Area: | 211.2×158.4 mm (H×V) | Contrast Ratio: | 500:1 (Typ.) (TM) |
| Luminance: | 430 cd/m² (Typ.) | Operating Mode: | TN, Normally White, Transmissive |
| Viewing Angle: | 65/65/45/65 (Typ.)(CR≥10) | Response Time: | 6/19 (Typ.)(Tr/Td) |
| Support Color: | 262K, 40% NTSC | Light Source: | 2 pcs CCFL, 50K hrs, No Driver |
| Interface: | CMOS (1 ch, 6-bit) , Connector 31 pins | Operating Temp: | -20 ~ 70 °C |
FAQ
Product Image
