1、No.2961105 Basic parameters

· Input voltage: 24V DC

· Contact form: A set of conversion contacts (single pole and double throw), also described as one open and one closed

· Contact material: AgSnO2 (silver tin oxide)

· Maximum switching voltage: 250V AC/DC

· Maximum switching current: 6A

· Coil resistance: 3390Ω±10% (at 20°C)

· Action time: 5ms

· Release time: 2.5ms

· Size: width 5mm, height 28mm, depth 15mm

2、No.2961105 Performance characteristics

· Power contacts:

The relay has power contacts, which are suitable for circuit control of a certain load.

· Safety isolation:

Safety isolation between the coil and the contacts, in line with relevant electrical safety standards.

· Protection level:

Depending on the model, the maximum protection level can reach RT III (anti-washing).

· Wide temperature range:

can operate and store at an ambient temperature of -40°C to 85°C.

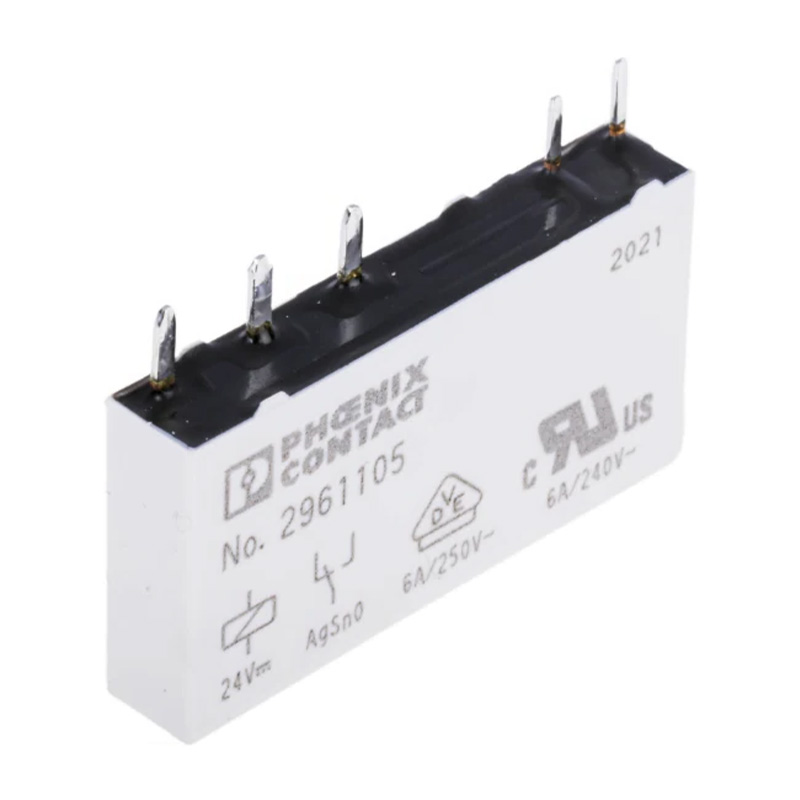

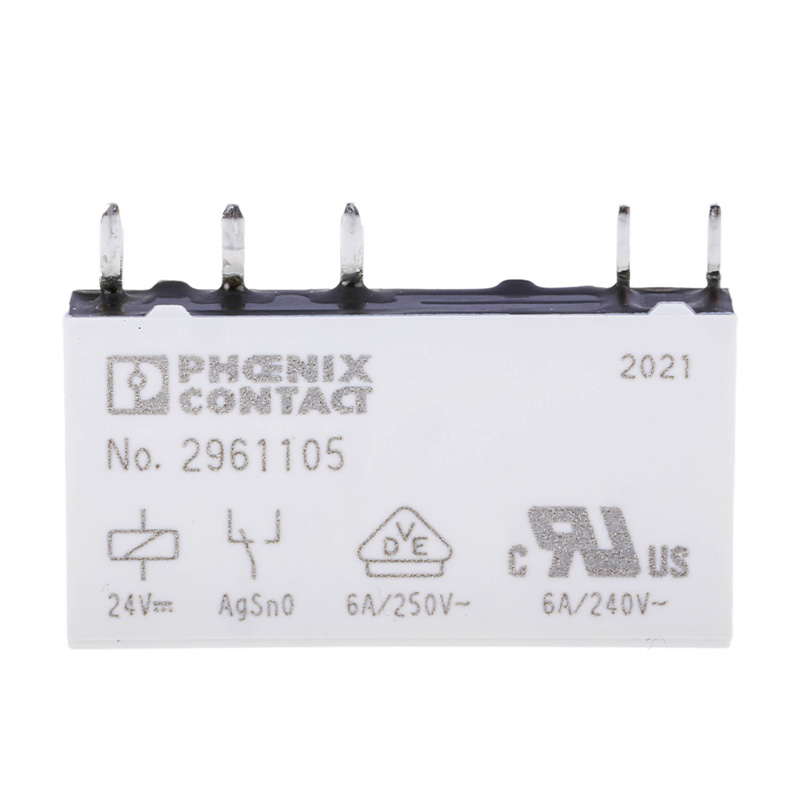

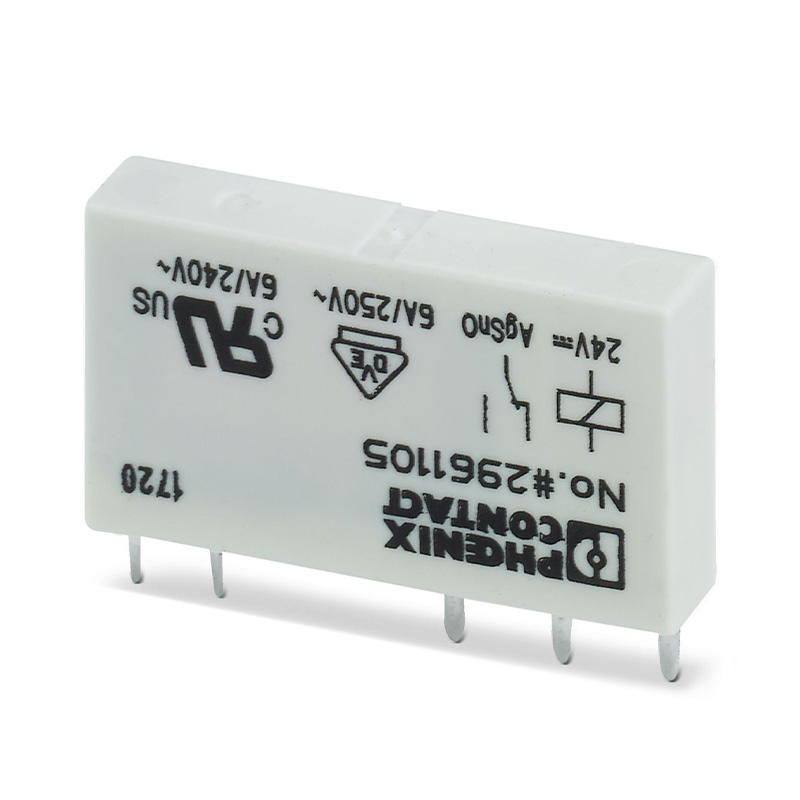

3、TNo.2961105 Product picture
