NEW Infineon IGBT FP50R12KT3 module

NEW Infineon IGBT FP50R12KT3 module

1、FP50R12KT3 Product advantage

1 High degree of integration：

· FP50R12KT3 is a PIM that contains a 6-unit IGBT circuit, a three-phase rectifier circuit, a brake buffer circuit, and a thermistor NTC.This integrated design can save system costs and simplify circuit design.

2 High performance：

· Using a fast TRENCHSTOP™ IGBT3 chip, with low switching loss and high switching frequency, it is suitable for high-frequency applications such as motor control and drive.

3 High reliability and high power density：

· The module has a compact design and uses a copper substrate to optimize heat dissipation to ensure stable operation in high temperature environments, improving the reliability and power density of the system.

4 Low stray inductance：

· The module design reduces stray inductance, helps to reduce electromagnetic interference, and improves the stability and efficiency of the system.

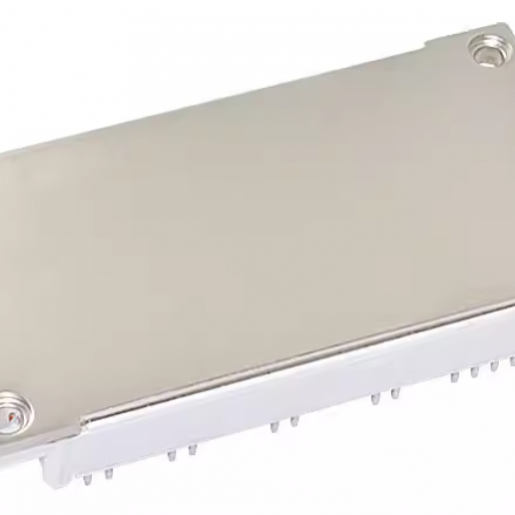

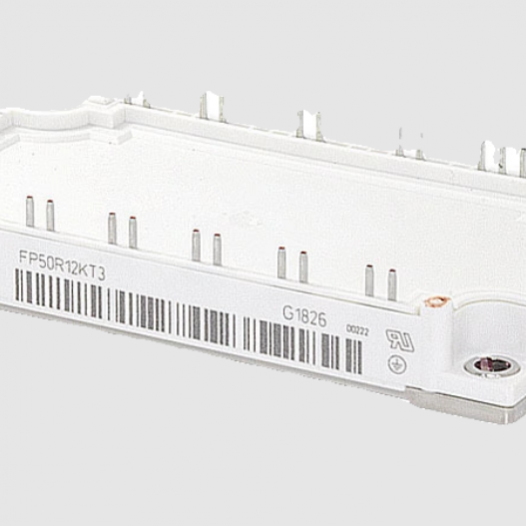

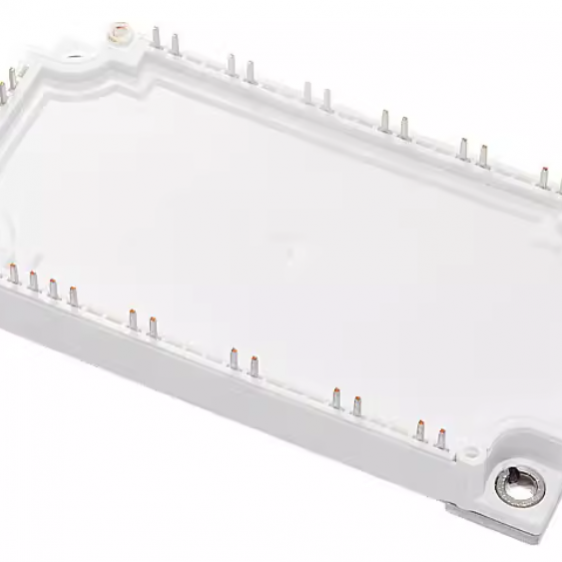

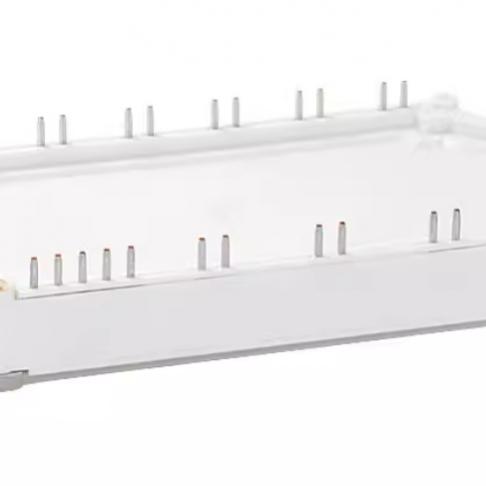

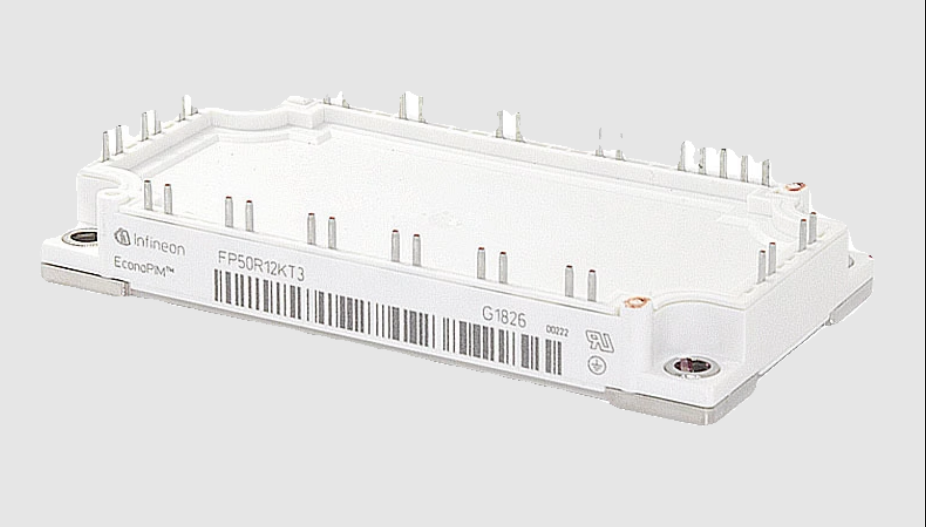

2、FP50R12KT3 Product picture
