HB140WX1-100 14.0 inch 1366*768 BOE LCD PANEL

HB140WX1-100 14.0 inch 1366*768 BOE LCD PANEL

The HB140WX1-100 (Product Code: BOE05B1 BOE05E5 BOE05EA) is a 14.0 inch diagonal a-Si TFT-LCD display panel product from BOE Technology Group Co., Ltd. (hereafter called BOE), with an integral WLED backlight system, With LED Driver , without touch screen.

Price: ~~$90.00~~ $80.00 / piece

Quantity:		Unit(s) MOQ: 1



Add to wish list

Calculate shipping price

WINNI (HK) ELECTRONIC CO., LIMITED

Invshop168

+8613827441621

winnihk88@winnihk.com

facebook:invshop@163.com

youtube:invshop-com

linked:WINNI (HK) ELECTRONIC CO., LIMITED

Require:*

Product Model*	Target price	Qty *

Message

Your contact info:

Additional info:

Name: *

Mr.

Ms.

1. Quote with shipping freight?

Email : *

YES

Phone:

2. Which carrier do you perfert?

Company:

	Fedex		UPS		DHL
	TNT		other

Country:*

All Categories

-81%
OFF

FF300R06KE3 INFINEON IGBT module

$55.00

$100.00

Products Details

Inventory Information

Seller Guarantees

Feedback

Reveiw

HB140WX1-100 Datasheets Download

Name: HB140WX1-100.pdf

Type

HB140WX1-100

Brand

BOE

Model

HB140WX1-100

HB140WX1-100 14.0 inch 1366*768 BOE LCD PANEL

Model:	HB140WX1-100	Panel-type:	TFT-LCD, LCM
Size:	14 inch	Resolution:	1366(RGB)×768 [WXGA] 112PPI

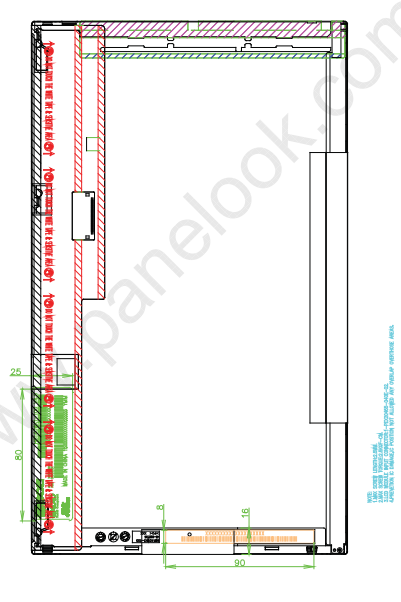

Display Area:	309.399(H)×173.952(V) mm	Outline Size:	323.5(H)×192(V) ×5.2(D) mm
Brightness:	200 cd/m² (Typ.)	Contrast Ratio:	600:1 (Typ.) (TM)
Viewing Angle:	45/45/20/40 (Typ.)(CR≥10)	Display Mode:	TN, Normally White, Transmissive
Display Colors:	262K 50% NTSC	Response Time:	8 (Typ.)(Tr/Td) ms
Signal Interface:	LVDS (1 ch, 6-bit) , 40 pins Connector	Backlight type:	WLED , 15K hours , With LED Driver
Touch Screen:	without	Operating Temp.:	0 ~ 50 °C

HB140WX1-100 14.0 inch 1366*768 BOE LCD PANEL

Model:	HB140WX1-100	Panel-type:	TFT-LCD, LCM
Size:	14 inch	Resolution:	1366(RGB)×768 [WXGA] 112PPI
Display Area:	309.399(H)×173.952(V) mm	Outline Size:	323.5(H)×192(V) ×5.2(D) mm
Brightness:	200 cd/m² (Typ.)	Contrast Ratio:	600:1 (Typ.) (TM)
Viewing Angle:	45/45/20/40 (Typ.)(CR≥10)	Display Mode:	TN, Normally White, Transmissive
Display Colors:	262K 50% NTSC	Response Time:	8 (Typ.)(Tr/Td) ms
Signal Interface:	LVDS (1 ch, 6-bit) , 40 pins Connector	Backlight type:	WLED , 15K hours , With LED Driver
Touch Screen:	without	Operating Temp.:	0 ~ 50 °C

Quality: New, Original package
RMA Policy: RMA 3 month
Quantity: 300
Sample: Paid Sample
Stock Location: China
Delivery: WorldWide
Lead Time: 1 week
Price Term: T/T, Western Union, MoneyGram, PayPal, Escrow etc
Remark: NEW
Weight: 2.500Kg

Return Policy
1.Please contact us within 7 days if you have any question after you receiving the items.
2.The returned items has to be in its original condition and you must provide ue with the shipping tracking number,specific reason for the return,We will issue a return or replacement for your oder after we received the returns.

Feedback
Your positive 5 stars feedback will be highly appreciated.Thanks for your time. If you are not satisfied with items,please contact us before leaving a negative feedback.We will work with you until you are satisfied.

Testing

Packaging

HB140WX1-100 14.0 inch 1366*768 BOE LCD PANEL

Model:	HB140WX1-100	Panel-type:	TFT-LCD, LCM
Size:	14 inch	Resolution:	1366(RGB)×768 [WXGA] 112PPI
Display Area:	309.399(H)×173.952(V) mm	Outline Size:	323.5(H)×192(V) ×5.2(D) mm
Brightness:	200 cd/m² (Typ.)	Contrast Ratio:	600:1 (Typ.) (TM)
Viewing Angle:	45/45/20/40 (Typ.)(CR≥10)	Display Mode:	TN, Normally White, Transmissive
Display Colors:	262K 50% NTSC	Response Time:	8 (Typ.)(Tr/Td) ms
Signal Interface:	LVDS (1 ch, 6-bit) , 40 pins Connector	Backlight type:	WLED , 15K hours , With LED Driver
Touch Screen:	without	Operating Temp.:	0 ~ 50 °C

Customer's Reviews:

Price:

Quality:

Ease of use:

Delivery speed:

OverALL Rating:

04/20/2024, By

Great

Price:

Quality:

Ease of use:

Delivery speed:

OverALL Rating:

04/20/2024, By

Great deal! Would buy from again

Price:

Quality:

Ease of use:

Delivery speed:

OverALL Rating:

04/20/2024, By

Excellent, many thanks

Price:

Quality:

Ease of use:

Delivery speed:

OverALL Rating:

04/20/2024, By

NO PROBLEM. GOOD WORK

Price:

Quality:

Ease of use:

Delivery speed:

OverALL Rating:

04/20/2024, By

Fast delivery

Price:

Quality:

Ease of use:

Delivery speed:

OverALL Rating:

04/20/2024, By

Worked Great

Price:

Quality:

Ease of use:

Delivery speed:

OverALL Rating:

04/20/2024, By

Good quality products

Price:

Quality:

Ease of use:

Delivery speed:

OverALL Rating:

04/20/2024, By

good

Price:

Quality:

Ease of use:

Delivery speed:

OverALL Rating:

04/20/2024, By

item as described and packaged well

Price:

Quality:

Ease of use:

Delivery speed:

OverALL Rating:

04/20/2024, By

Order received in good condition. Would definitely use this seller again for any future orders.

<<12 3 4 5 6 7...15>>

Previous： HT121X01-300 HYDIS 12.1 inch 1024*768 LCD PANEL HT121X01

Next：NV133FHM-N52 1920*1080 13.3 inch BOE LCD PANEL

HB140WX1-100 Summary

It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C , and the maximal vibration level of 1.5G (14.7 m/s²).
