FP15R12W1T4_B60ENG IGBT MODULE

1、FP15R12W1T4 Product features

1 Low switching loss：

· FP15R12W1T4 adopts fast TRENCHSTOP™ IGBT4 technology, which has low switching loss, which helps to improve the overall efficiency of the system and reduce energy loss.

2 VCEsat with positive temperature coefficient：

· The VCEsat (collector-emitter saturation voltage) of this module has a positive temperature coefficient, which helps to achieve current equalization between parallel modules and improves the stability and reliability of the system.

3 Low thermal resistance Al2O3 substrate：

· The use of low thermal resistance Al2O3 substrate helps the heat dissipation of the module, reduces the operating temperature of the module, and extends the service life.

4 Integrated mounting clip：

· The integrated mounting clip makes the installation stronger and improves the mechanical stability of the module.

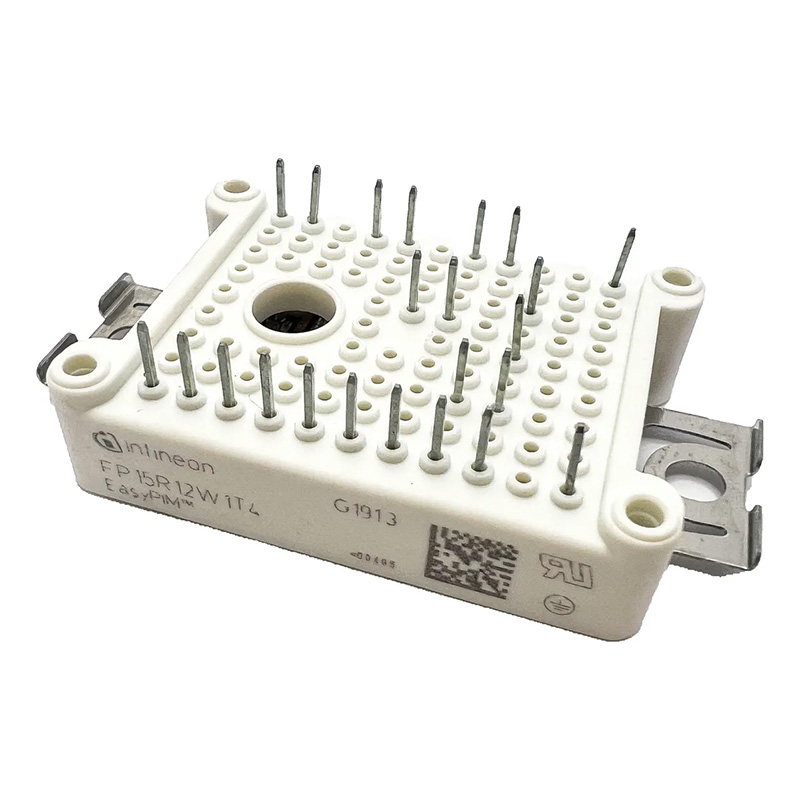

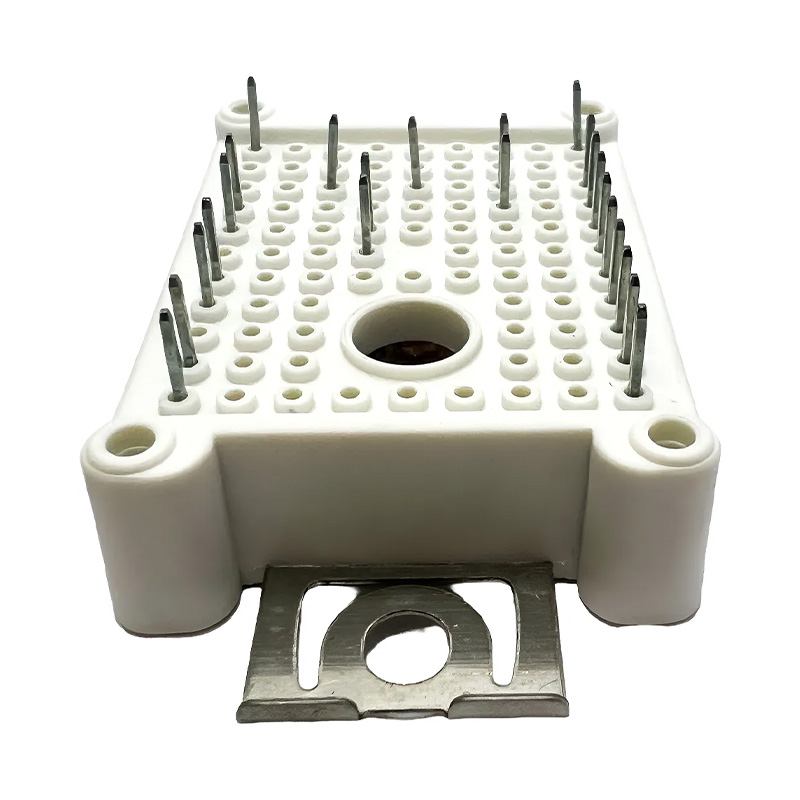

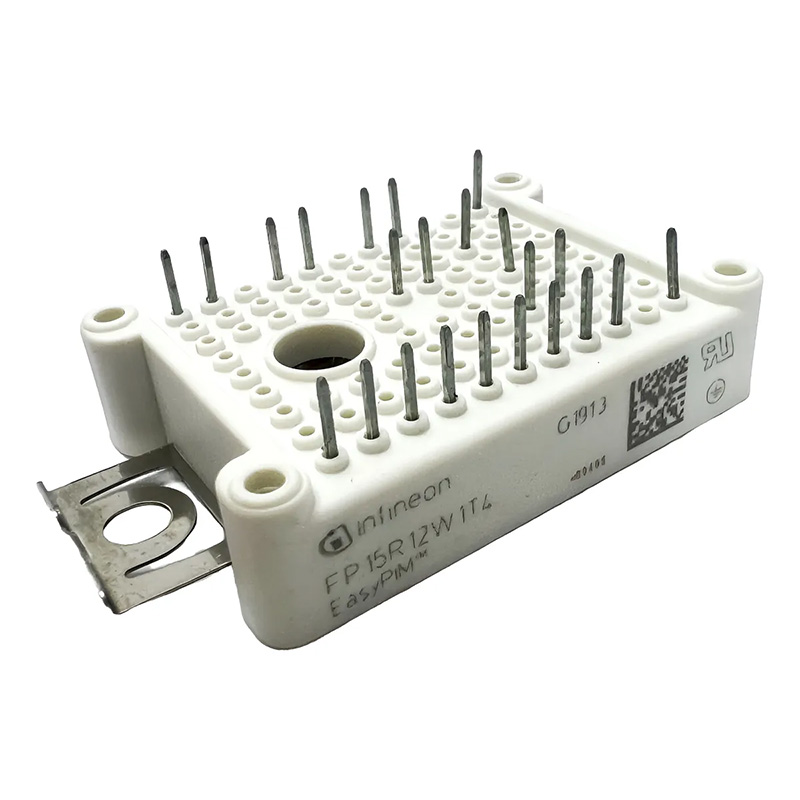

2、FP15R12W1T4 Product picture
