6XV1830-3EH10 Siemens original imported shielded soft core wire

6XV1830-3EH10 Siemens original imported shielded soft core wire

1、6XV1830-3EH10 Product advantage

1 High flexibility and durability：

· The cable adopts a highly flexible design, has excellent bending performance, a bending radius of about 120mm, and can withstand at least 3 million bending cycles. It is suitable for occasions where frequent movement and bending are required.

· The outer sheath of the cable is made of polyether polyurethane (PUR) material, which has excellent oil resistance and UV resistance, and can be used for a long time in harsh industrial environments.

2 Excellent shielding performance：

· The cable adopts a double-layer shielding structure, including imported aluminum foil winding shielding and imported tinned silver-copper mesh braided shielding. The braided shielding density is greater than 90%, which can effectively resist external electromagnetic interference and ensure the stable transmission of data and signals.

3 Good signal transmission performance：

· The characteristic impedance of the cable is 150±15Ω, the mutual capacitance is less than 60pf/m, the peak voltage is 250V (for non-power connection), and the DC resistance of the conductor is 57.5Ω/km. These parameters ensure that the cable has good signal transmission performance.

4 Wide operating temperature range：

· The operating temperature range of the cable is between -45℃ and 120℃, which can adapt to various extreme working environments.

5 Easy to install and maintain：

· The cable adopts FastConnect technology, and the connector connection is simple and fast, saving installation time.

· The cable is printed with a length mark in meters, which is easy to determine the length and easy to install and maintain.

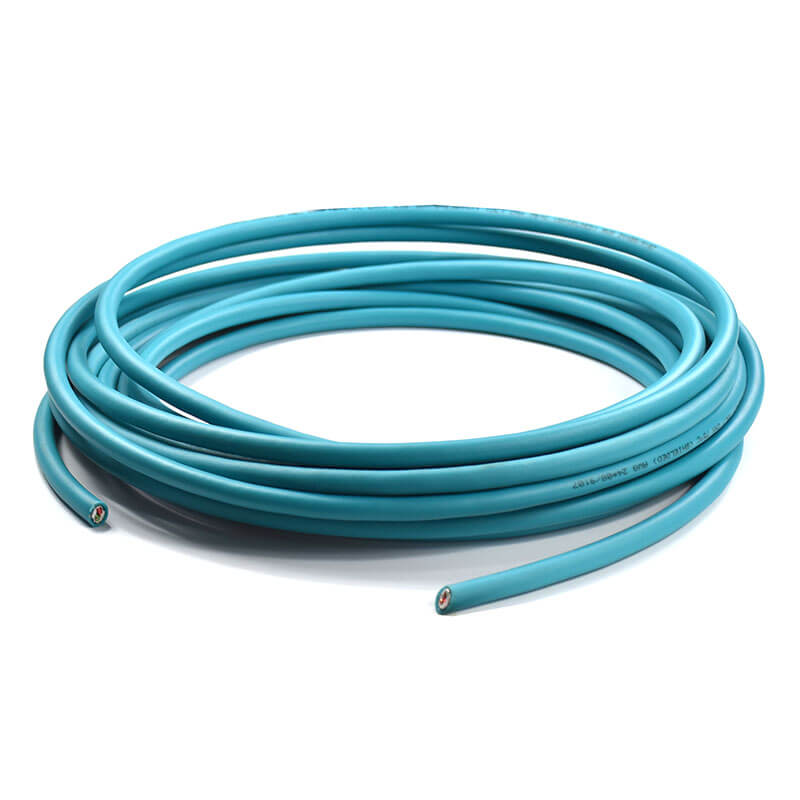

2、6XV1830-3EH10 Product picture
