1734-OB8S New Safety Output Module Gold Supplier

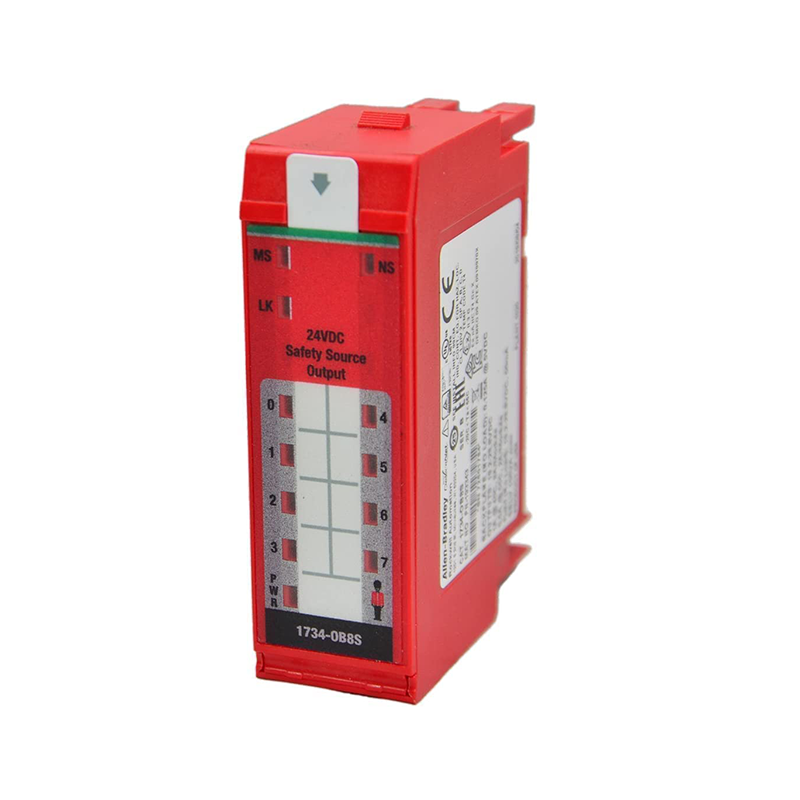

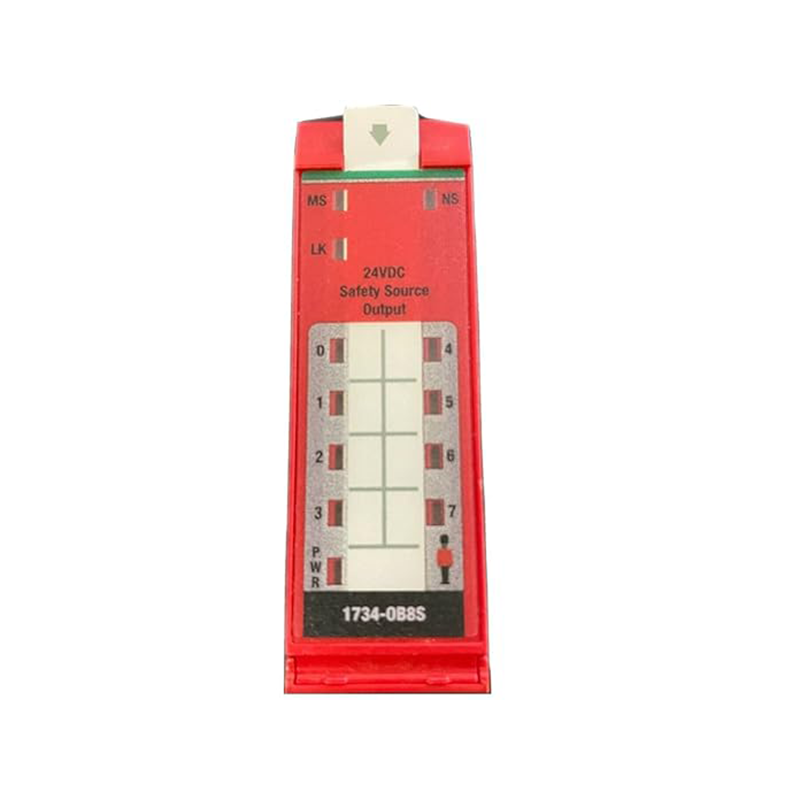

1、1734-OB8S Product picture

2、1734-OB8S Main functions

· Output channels:

It has 8 current source output channels, which operate at a 24 volt DC power supply voltage.

· Working mode:

Support single-channel or dual-channel mode, dual-channel mode can realize redundant control and improve system reliability.

· Short circuit protection:

Built-in short circuit detection and protection functions can detect short circuit, high, low and cross circuit faults, and the output can aggregate 8A current.

· Safety certification:

in line with SIL CL2, PLe, category 4 standards, suitable for application scenarios with high safety requirements.

3、1734-OB8S Technical specifications

· Power supply voltage: 24 volts direct current (operating voltage range: 19.2-28.8 volts direct current).

· Output current: 1A per channel.

· Pulse characteristics: The pulse width is 475 microseconds and the pulse period is 575 milliseconds.

· Reaction time: 6.2 milliseconds

· Working environment: working temperature -20 to 55 degrees Celsius, storage temperature -40 to 85 degrees Celsius.
